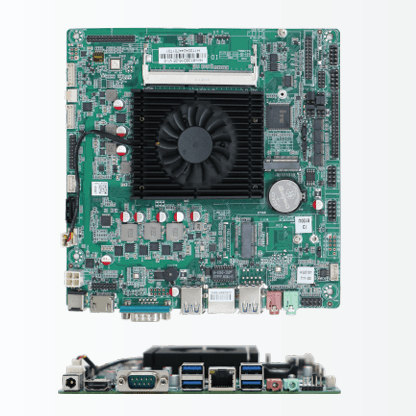

H-SKLU01
Mini-ITX industrial motherboard with Intel 6/7/8th generation, dual LAN, 6x COM
Motherboards
Technical Specifications
Processor
Intel 6/7/8 generation Core i3/i5/i7, Celeron
Memory
1x DDR3 SO-DIMM, up to 8GB
Network
2x Gigabit LAN (RTL8111H)
Display
VGA (1920×1080@60Hz) + HDMI (4096×2160@24Hz) + LVDS/eDP
Storage
1x SATA 3.0 + 1x M.2 2242/2280 (SATA/NVMe)
I/O
6x RS232, 4x USB 3.0, 3x USB 2.0, 1x LPT
Dimensions
170 × 170mm (Mini-ITX)
Power Supply
DC 12V
Expansion & Connectivity
1x M.2 KEY-E (PCIe X1 + USB 2.0)
1x M.2 KEY-B (PCIe X1 + USB 3.0)
1x SATA 3.0
1x M.2 2242/2280
Operating Environment
Operating Temperature0°C to 60°C
Storage Temperature-20°C up to 75°C
Humidity10% - 90% non-condensing
Supported OS
Windows 10Windows 11Linux
Applications
Self-service terminalsRetail systemsAll-in-one computersIndustrial Control
Description
H-SKLU01 is industrial Mini-ITX motherboard (170×170mm) based of Intel 6/7/8th generation Core i3/i5/i7 or Celeron processors. Features rich range from interfaces including VGA, HDMI, LVDS/eDP display outputs, dual gigabit LAN, 6 serial ports and multiple USB ports. Suitable for self-service terminals, retail systems, all-in-one computers and industrial control.
