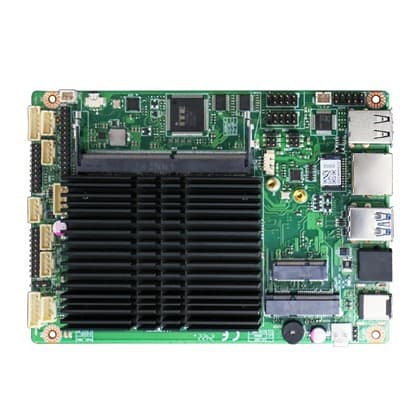

HI-N5095D12

3.5" industrial motherboard with Intel Celeron N5095, compact form factor 148×102mm

HI-N5095D12 - 3.5" industrial motherboard with Intel Celeron N5095, compact form factor 148×102mm | IWILL UK
Motherboards

Features

  • Intel Celeron N5095 (4 cores, up to 2.7GHz, 15W)
  • 1x DDR4 2933MHz SO-DIMM, up to 16GB
  • Dual eDP display
  • 1x Gigabit LAN (RTL8111H)
  • 2x RS232 COM ports
  • 2x USB 3.0 + 8x USB 2.0
  • Compact size 148×102mm
EmailWhatsApp
3 Years
Warranty
Fast
Delivery
Support
In English

Technical Specifications

Processor
Intel Celeron N5095 (4 cores, 2.0-2.7GHz, 15W TDP)
Memory
1x DDR4 2933MHz SO-DIMM, up to 16GB
Network
1x Gigabit LAN (RTL8111H)
Display
2x eDP (dual display, 1920×1080@60Hz)
Storage
1x mSATA
I/O
2x RS232, 2x USB 3.0, 8x USB 2.0, 1x LPT, 1x PS/2
Dimensions
148 × 102mm (3.5")
Power Supply
DC 12V

Expansion & Connectivity

1x M.2 KEY-E (PCIe X1 + USB 2.0)
1x mSATA

Operating Environment

Operating Temperature0°C to 60°C
Storage Temperature-20°C up to 75°C
Humidity5% - 95% non-condensing

Supported OS

Windows 8Windows 10Windows 11Linux

Applications

Embedded systemsPOS terminalsIndustrial ControlSelf-service terminals

Description

HI-N5095D12 is compact 3.5-inch industrial motherboard with Intel Celeron N5095 (Jasper Lake) processor. With dimensions of only 148×102mm is ideal for embedded systems with limited space. Supports up to 16GB DDR4 memory, dual eDP display, gigabit LAN and M.2 expansion for Wi-Fi/Bluetooth.
