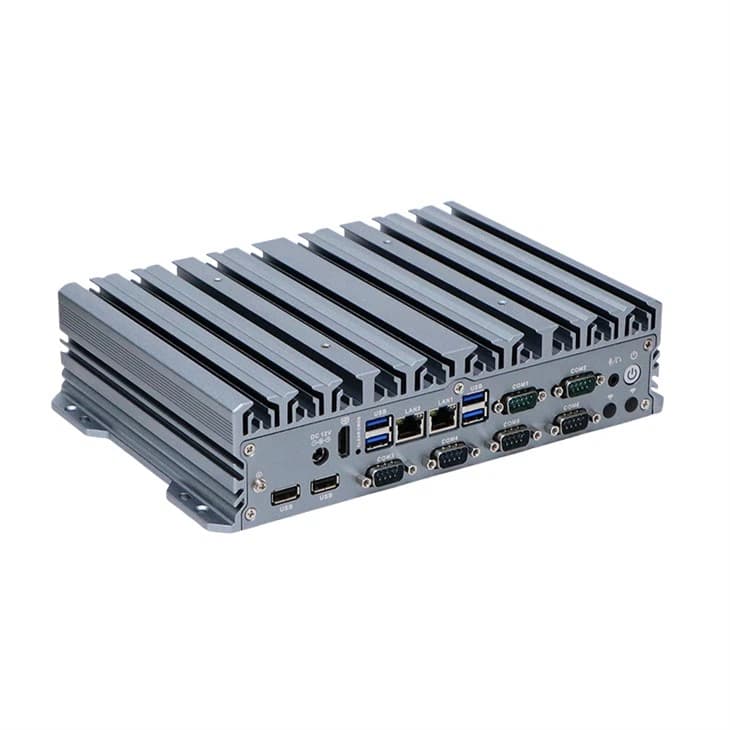

IBOX-3326
Rugged industrial PC with 6x COM ports, dual LAN, Windows XP compatibility
Industrial PCs
Technical Specifications
Processor
Intel Celeron J1900 / Core series
Memory
DDR3/DDR4 SODIMM, up to 32GB
Network
2x Realtek Gigabit LAN
Serial Ports
6x COM (COM1/COM2: RS232/RS485, COM3-6: RS232)
Display
1x DisplayPort HD
Storage
1x mSATA + 1x 2.5" SATA HDD/SSD
I/O
4x USB 3.0, 2x USB 2.0 (J1900: 1x USB 3.0, 5x USB 2.0)
Dimensions
260 × 173 × 61mm
Weight
2.5kg
Power Supply
DC 12V (option 9-36V DC)
Mounting
Wall or desktop
Features
CE, CCC, FCC Class A, RoHS
Expansion & Connectivity
1x mSATA
1x 2.5" SATA HDD/SSD
Operating Environment
Operating Temperature-10°C to 60°C
Storage Temperature-20°C to 70°C
Humidity5% - 95% non-condensing
Supported OS
Windows XPWindows 7Windows 10Windows 11Linux
Applications
Factory automationPLC controlSCADALegacy systems
Description
IBOX-3326 is rugged fanless industrial PC with aluminium chassis, 6 serial COM ports and dual Gigabit LAN for harsh production environments with support for Windows XP up to Windows 11.
